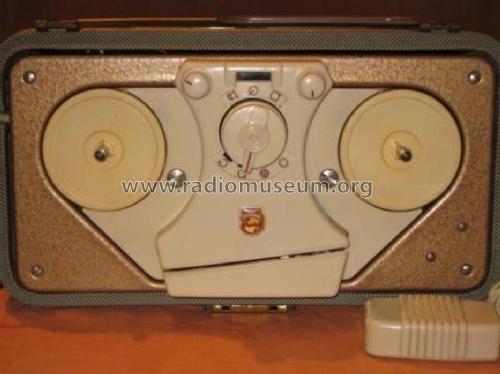

EL3510 /29; Philips France; (ID = 112258) R-Player
Philips France;: EL3510 /29 [R-Player] ID = 112258 892x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL3510 /29, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1955 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: ECC83 EL84 EZ80 DM70
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: EL3510 /29 - Philips France; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 350 x 190 x 245 mm / 13.8 x 7.5 x 9.6 inch
Notes

Magnétophone EL3510 /29 pour bande de 6,3 mm.

Pistes: 2 (1 dans chaque direction).

Moteur(s): 1.

Vitesse: 9.5 cm/sec.

Diamètre des bobines: 13 cm.

Prise pour haut-parleur externe avec coupure automatique de l'hp intérieure.

Entrées:

  • Microphone: EL6100.
  • Radio ou pick-up.
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)

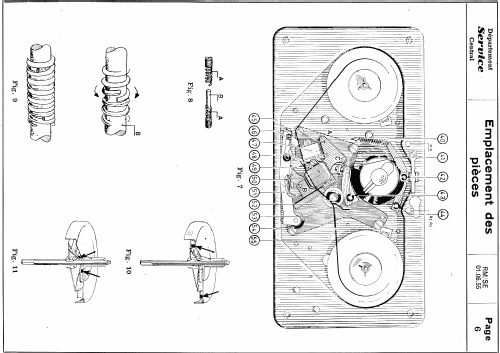

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
