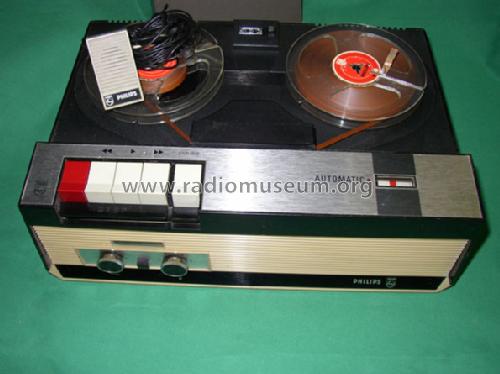

Philips; Eindhoven: EL3572A Automatic / 00/ 15/ 16/ 17/ 19/ 22/ 30/ 43 [R-Player] ID = 752500 595x446
Select picture or schematic to display from thumbnails on the right and click for download.
For model EL3572A Automatic / 00/ 15/ 16/ 17/ 19/ 22/ 30/ 43, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1966 Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF83 ECC83 EL95 EM87
Semiconductors (the count is only for transistors) 1: AC107 OA79 BA100
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: EL3572A Automatic / 00/ 15/ 16/ 17/ 19/ 22/ 30/ 43 - Philips; Eindhoven tubes
Material Plastics (no bakelite or catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 360 x 130 x 250 mm / 14.2 x 5.1 x 9.8 inch
Notes Parallel types of Philips Austria Maestro 13 Automatic N4304
Two track recording and playback, 9,5 cm/s band speed,
max. spool diameter 15 cm, frequency response 80...12000 Hz.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)

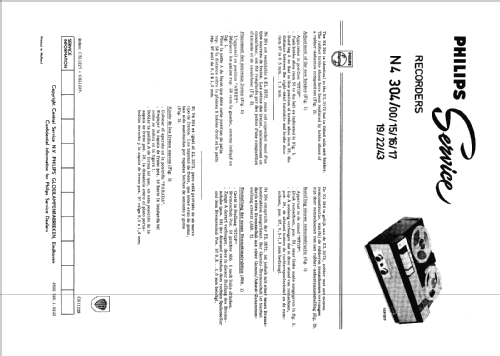

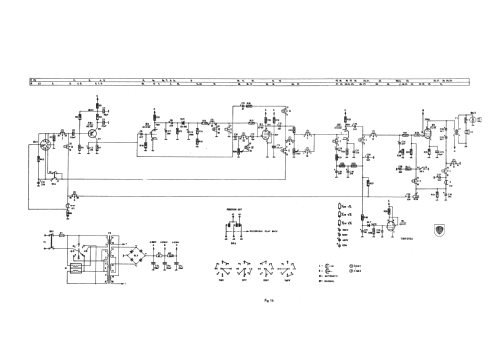

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Adriano Scarpa. See "Data change" for further contributors.
