F5SF13A Ch= SF3

F5SF13A Ch= SF3; Philips Finland - (ID = 2398717) Radio

F5SF13A Ch= SF3; Philips Finland - (ID = 2398718) Radio

F5SF13A Ch= SF3; Philips Finland - (ID = 2398719) Radio

F5SF13A Ch= SF3; Philips Finland - (ID = 2398720) Radio

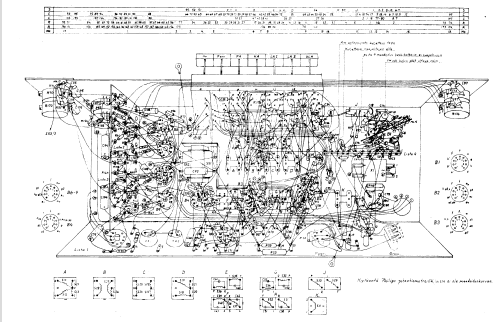

F5SF13A Ch= SF3; Philips Finland - (ID = 2398721) Radio

F5SF13A Ch= SF3; Philips Finland - (ID = 2398722) Radio
Use red slider bar for more.
F5SF13A Ch= SF3; Philips Finland - (ID = 2398717) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EABC80 EM80 ECL82 ECL82 ECL82 ECL82
Semiconductors (the count is only for transistors) B155C120 OA79 OA79
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: F5SF13A Ch= SF3 - Philips Finland - see also
Notes

See also Philips model B5SF11A with the same chassis SF3.

Model page created by a member from FIN. See "Data change" for further contributors.
