• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95553

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 30

• Valves / Tubes
• MW6-2 PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PL82 ECH81 PCF80 PCF80 PL81 PY81 DAF96 ECL80 PL82 PY82 PY82 UBC41 UL44 UL44 UY41 UY41 UY41 EY51 EY51 EY51

• Main principle
• Superheterodyne (common); ZF/IF 38900/5500 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

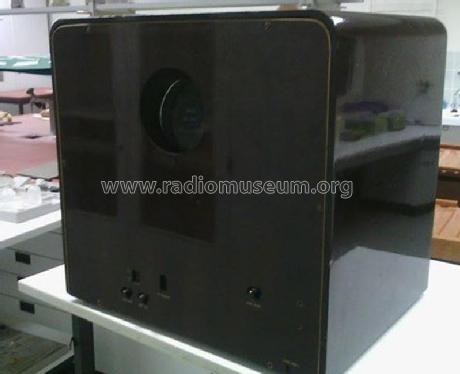

• Model: Fernseh Projektor 2600 VE2600 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 610 x 500 mm / 24.4 x 24 x 19.7 inch

• Notes
• Hochspannung für Bildröhre 25 kV.
  Schmidt-Optik mit Korrekturlinse für Leinwandprojektion 1,6 × 1,2 m.
  VHF-Kanäle 2 bis 11.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
