For model FS556AUF, Philips, Svenska AB, Stockholm:

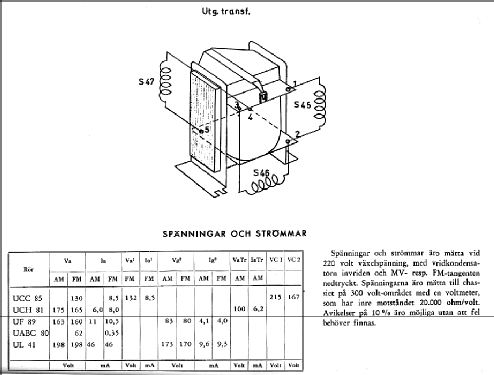

Philips service manual 1956.

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UL41 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage AC/DC-set / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: FS556AUF - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 760 x 654 x 347 mm / 29.9 x 25.7 x 13.7 inch
Net weight (2.2 lb = 1 kg) 10.2 kg / 22 lb 7.5 oz (22.467 lb)
Source of data -- Original-techn. papers.

Model page created by Lennart Nilsson. See "Data change" for further contributors.
