For model FS732A, Philips, Svenska AB, Stockholm:
Front view with lids open

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECH42 EAF42 EF40 EAF42 EM34 EL41 EL41 AZ1
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch
Power out
from Radiomuseum.org Model: FS732A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 900 x 720 x 440 mm / 35.4 x 28.3 x 17.3 inch
Notes

Record Player AG1000S 33/45/78rpm with changer

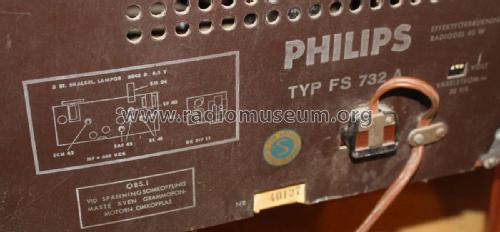

Radio part 60W power input according to note on tube list.

Model page created by Anders Sandgren. See "Data change" for further contributors.
