F5G62A

F5G62A; Philips Electrical, (ID = 563462) Radio

F5G62A; Philips Electrical, (ID = 563463) Radio

F5G62A; Philips Electrical, (ID = 563464) Radio

F5G62A; Philips Electrical, (ID = 563465) Radio

F5G62A; Philips Electrical, (ID = 563466) Radio

F5G62A; Philips Electrical, (ID = 1003799) Radio

F5G62A; Philips Electrical, (ID = 1003800) Radio

F5G62A; Philips Electrical, (ID = 1003801) Radio

F5G62A; Philips Electrical, (ID = 1003802) Radio
F5G62A; Philips Electrical, (ID = 1952946) Radio F5G62A; Philips Electrical, (ID = 1952948) Radio
F5G62A; Philips Electrical, (ID = 1952949) Radio F5G62A; Philips Electrical, (ID = 1952950) Radio
Use red slider bar for more.
F5G62A; Philips Electrical, (ID = 1952946) Radio
Philips Electrical,: F5G62A [Radio] ID = 1952946 770x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model F5G62A, Philips Electrical, Lamps, Industrial - Miniwatt; London:
A 1956 Philips F5G62A (G62A) radiogram, Ebay UK item no. 191742257155 seller emmausbristol

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF80 EF80 ECH81 EF85 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: F5G62A - Philips Electrical, Lamps,
Shape Console with any shape - in general
Notes Radiogram fitted with Philips type AG1003 record changer. Same chassis as model G63A.

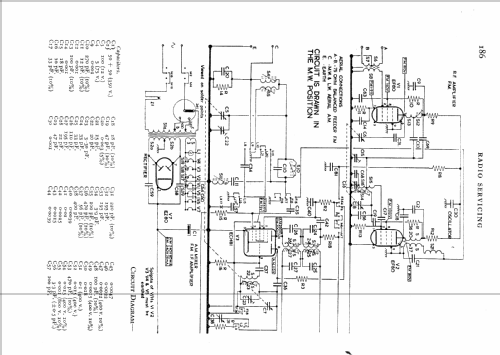

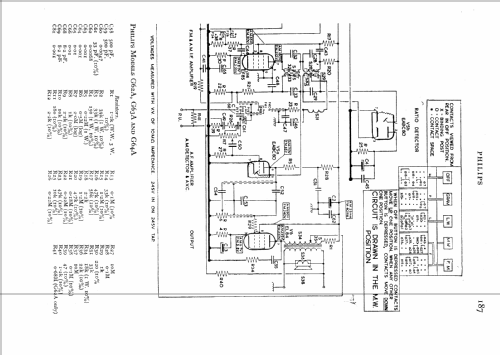

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
