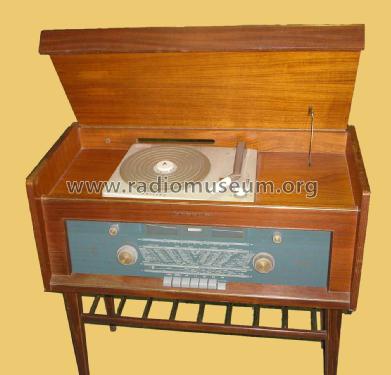

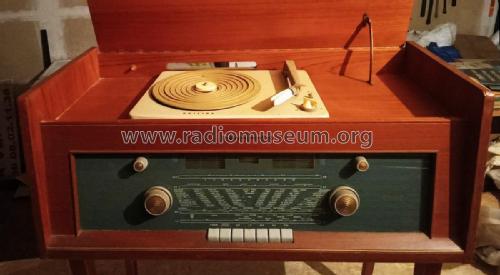

For model H5S04A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EBF89 ECC83 EM84 EL86 EL86
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (5 W max.)
from Radiomuseum.org Model: H5S04A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Console, Highboy (legs > 50 %).
Dimensions (WHD) 700 x 720 x 340 mm / 27.6 x 28.3 x 13.4 inch
Notes

Stereophonic af amplifier.

Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)

Model page created by José Moreno-Conej. See "Data change" for further contributors.
