HCH550A

HCH550A; Philips - Schweiz (ID = 1528741) Radio

HCH550A; Philips - Schweiz (ID = 1528742) Radio

HCH550A; Philips - Schweiz (ID = 1528743) Radio

HCH550A; Philips - Schweiz (ID = 1528744) Radio

HCH550A; Philips - Schweiz (ID = 1528745) Radio

HCH550A; Philips - Schweiz (ID = 2381946) Radio
HCH550A; Philips - Schweiz (ID = 1670956) Radio HCH550A; Philips - Schweiz (ID = 1670957) Radio
HCH550A; Philips - Schweiz (ID = 1670958) Radio HCH550A; Philips - Schweiz (ID = 1670959) Radio
HCH550A; Philips - Schweiz (ID = 1670960) Radio HCH550A; Philips - Schweiz (ID = 1670961) Radio
Use red slider bar for more.
HCH550A; Philips - Schweiz (ID = 1670956) Radio
Philips - Schweiz: HCH550A [Radio] ID = 1670956 865x616

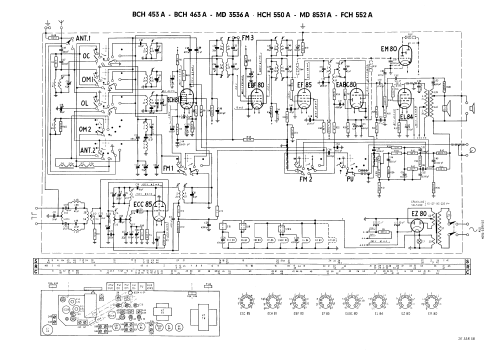

Select picture or schematic to display from thumbnails on the right and click for download.
For model HCH550A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner

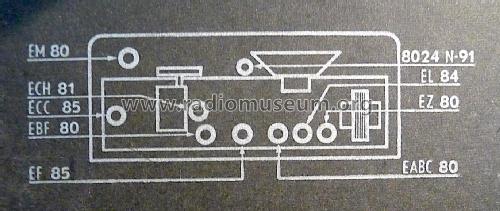

Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: HCH550A - Philips - Schweiz
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 583 x 375 x 317 mm / 23 x 14.8 x 12.5 inch
Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)

Model page created by Walter Surber. See "Data change" for further contributors.



All listed radios etc. from Philips - Schweiz
Here you find 288 models, 209 with images and 212 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
