HE-613-A

HE-613-A; Philips Ibérica, (ID = 1701004) Radio HE-613-A; Philips Ibérica, (ID = 752712) Radio
HE-613-A; Philips Ibérica, (ID = 752806) Radio HE-613-A; Philips Ibérica, (ID = 1701005) Radio
HE-613-A; Philips Ibérica, (ID = 1701009) Radio HE-613-A; Philips Ibérica, (ID = 1701016) Radio
Use red slider bar for more.
HE-613-A; Philips Ibérica, (ID = 1701004) Radio
Philips Ibérica,: HE-613-A [Radio] ID = 1701004 700x508
Select picture or schematic to display from thumbnails on the right and click for download.
For model HE-613-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.

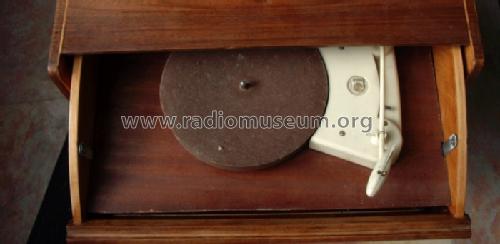

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 90; 110; 125; 145; 200; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 inch = 50.8 cm
Power out
from Radiomuseum.org Model: HE-613-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 6'173.35 ESP
Literature/Schematics (1) Anuncio La Vanguardia Española 01/10/1952

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
