HSF513A

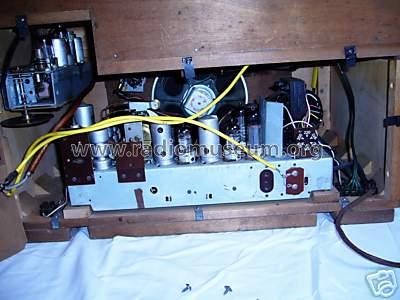

HSF513A; Philips Finland - (ID = 432337) Radio HSF513A; Philips Finland - (ID = 432340) Radio

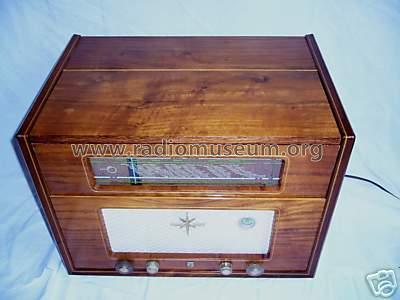

HSF513A; Philips Finland - (ID = 432338) Radio HSF513A; Philips Finland - (ID = 432339) Radio
Use red slider bar for more.

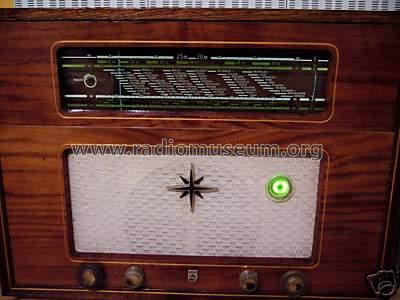

HSF513A; Philips Finland - (ID = 432337) Radio
Philips Finland -: HSF513A [Radio] ID = 432337 400x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model HSF513A, Philips Finland - see also Fenno and TeRate:
Bild ebay Verkäufer: nostalgie-fan

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 EM34 AZ41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: HSF513A - Philips Finland - see also
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 440 x 380 mm / 22.4 x 17.3 x 15 inch

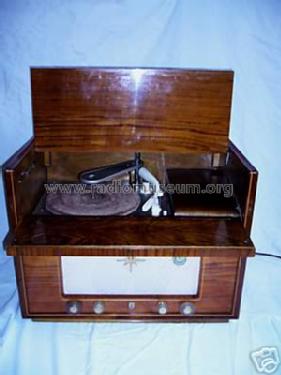

Notes Plattenwechsler-Chassis 2508 für 33/45/78 U/min eingebaut.
Source of data -- Collector info (Sammler)

Model page created by Bernhard Nagel. See "Data change" for further contributors.



All listed radios etc. from Philips Finland - see also Fenno and TeRate
Here you find 159 models, 149 with images and 38 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
