Jupiter 553 BD553A-03

Jupiter 553 BD553A-03; Philips Radios - (ID = 51026) Radio

Jupiter 553 BD553A-03; Philips Radios - (ID = 51027) Radio

Jupiter 553 BD553A-03; Philips Radios - (ID = 2383990) Radio
Jupiter 553 BD553A-03; Philips Radios - (ID = 1579880) Radio
Use red slider bar for more.
Jupiter 553 BD553A-03; Philips Radios - (ID = 1579880) Radio
Philips Radios -: Jupiter 553 BD553A-03 [Radio] ID = 1579880 454x325
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter 553 BD553A-03, Philips Radios - Deutschland:
Bild aus Servicedoku.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: Jupiter 553 BD553A-03 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 385 x 260 mm / 25.2 x 15.2 x 10.2 inch
Notes

Siehe auch Jupiter 553/3D.

Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 318.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56

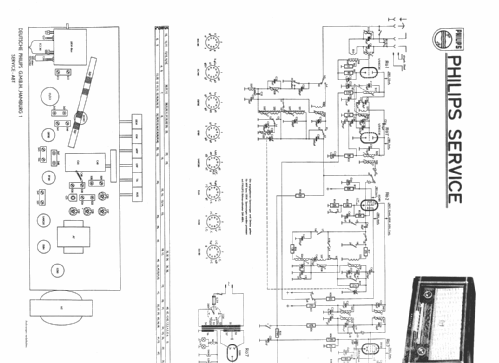

Literature/Schematics (1) -- Original-techn. papers.
