Jupiter-Phono-Super 465 HD465A

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 69393) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 69394) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 71422) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 71423) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 253926) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 253928) Radio

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 253929) Radio
Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 254384) Radio Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 438515) Radio
Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 438516) Radio Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 25187) Radio

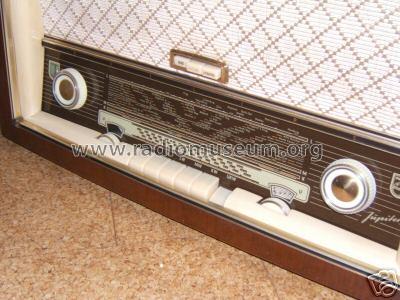

Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 438517) Radio Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 1673451) Radio
Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 1673455) Radio Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 1673458) Radio
Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 1673460) Radio Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 2201526) Radio
Use red slider bar for more.
Jupiter-Phono-Super 465 HD465A; Philips Radios - (ID = 254384) Radio
Philips Radios -: Jupiter-Phono-Super 465 HD465A [Radio] ID = 254384 728x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jupiter-Phono-Super 465 HD465A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1956–1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 EABC80 EM80 EL86 EL86 EZ81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220 Volt
Loudspeaker 2 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Jupiter-Phono-Super 465 HD465A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 395 x 318 mm / 25.2 x 15.6 x 12.5 inch
Notes drehbare Ferritantenne; Phono-Chassis = AG2004.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 485.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57
