Jupiter-Phono-Super 554 (Phonosuper) HD554A

Philips Radios - Deutschland

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 20338
    • Brand: Deutsche Philips-Ges.

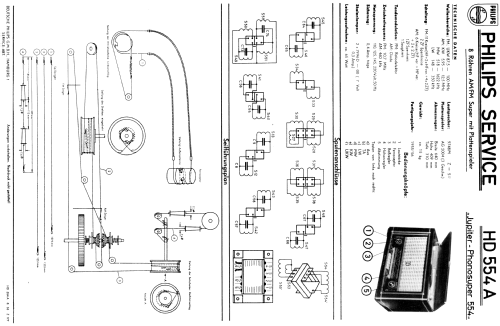

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 5.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Jupiter-Phono-Super 554 HD554A - Philips Radios - Deutschland
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 640 x 395 x 318 mm / 25.2 x 15.6 x 12.5 inch
  • Notes
  • Phono - Chassis = AG2004D

    Im Handbuch VDRG 1955/56 mit Jupiter-Phonosuper bezeichnet.

  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Price in first year of sale
  • 448.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
