Konzertmeister HA521A
Philips - Österreich: Konzertmeister HA521A [Radio] ID = 149653 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952/1953 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 458,5 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | Record Player (not changer) |
| Power type and voltage | Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch |
| Power out | |
| from Radiomuseum.org | Model: Konzertmeister HA521A - Philips - Österreich |

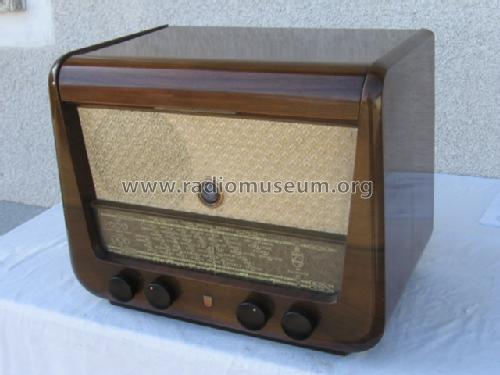

| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 455 x 360 x 285 mm / 17.9 x 14.2 x 11.2 inch |

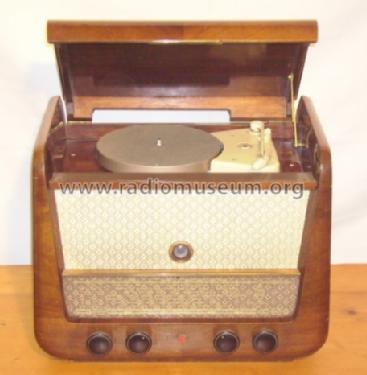

| Notes | Eingebauter Plattenspieler Philips 2978 oder AG 2002 |
| Net weight (2.2 lb = 1 kg) | 12.1 kg / 26 lb 10.4 oz (26.652 lb) |
| Price in first year of sale | 2'475.00 ATS |
| Source of data | -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb |
| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
