L1E11T /01R /01D /01L
Use red slider bar for more.
Philips Ibérica,: L1E11T /01R /01D /01L [Radio] ID = 232867 536x408
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 7: OC44 OC45 OC45 OC71 OC71 OC74 OC74 OA79 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 3 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: L1E11T /01R /01D /01L - Philips Ibérica, COPRESA, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 141 x 81.5 x 31 mm / 5.6 x 3.2 x 1.2 inch |
| Notes | Philips Ibérica S.A. L1E11T Variantes indican color de la caja siendo:
See also similar model L0X95T. |
| Price in first year of sale | 2'280.60 Pts |
| Mentioned in | Anuncio La Vanguardia Española diciembre 1961 |

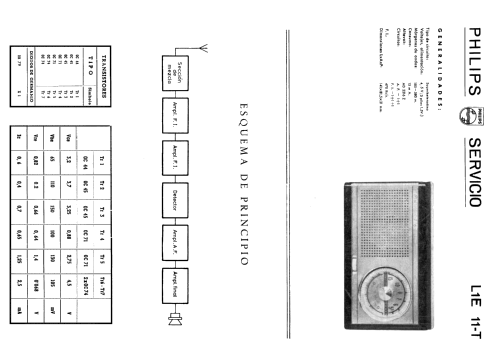

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
