L3S86T; Philips, Svenska AB, (ID = 2407464) Radio
Philips, Svenska AB,: L3S86T [Radio] ID = 2407464 1400x1669
Select picture or schematic to display from thumbnails on the right and click for download.
For model L3S86T, Philips, Svenska AB, Stockholm:

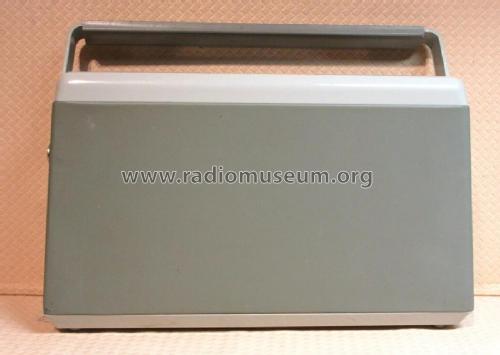

Front view

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 TF65 or. OC71 TF65 or. OC71 OC72 OC72 OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.

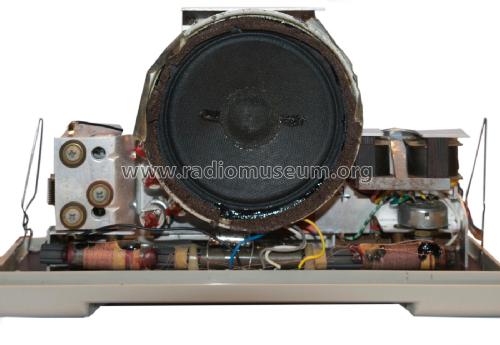

Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: L3S86T - Philips, Svenska AB, Stockholm
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 200 x 80 mm / 11 x 7.9 x 3.1 inch
Notes

Two holders for 4.5 volt batteries (in series).

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Collectors' prices

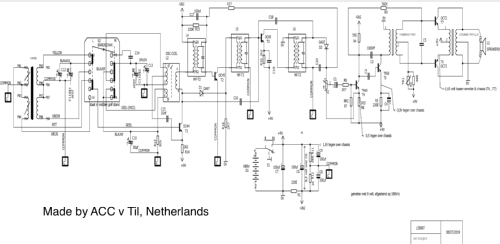

Literature/Schematics (1) -- Schematic

Model page created by Fred Overbeek. See "Data change" for further contributors.
