L4S23T

L4S23T; Philips, Svenska AB, (ID = 299295) Radio L4S23T; Philips, Svenska AB, (ID = 299296) Radio
L4S23T; Philips, Svenska AB, (ID = 299297) Radio L4S23T; Philips, Svenska AB, (ID = 2624634) Radio
L4S23T; Philips, Svenska AB, (ID = 2624635) Radio L4S23T; Philips, Svenska AB, (ID = 2624636) Radio
L4S23T; Philips, Svenska AB, (ID = 2624637) Radio L4S23T; Philips, Svenska AB, (ID = 2624638) Radio
L4S23T; Philips, Svenska AB, (ID = 2624639) Radio L4S23T; Philips, Svenska AB, (ID = 2624640) Radio
Use red slider bar for more.

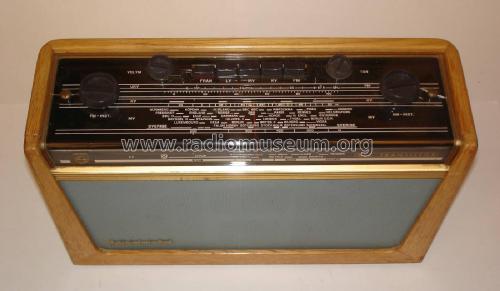

L4S23T; Philips, Svenska AB, (ID = 299295) Radio
Philips, Svenska AB,: L4S23T [Radio] ID = 299295 867x559
Select picture or schematic to display from thumbnails on the right and click for download.
For model L4S23T, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: L4S23T - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 325 x 195 x 100 mm / 12.8 x 7.7 x 3.9 inch
Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Source of data - - Data from my own collection

Model page created by Peter Seifert. See "Data change" for further contributors.
