• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 101642

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• PCC88 PCF80 EF85 EF80 PCL82 PL84 PCL84 ECH81 PL36 PY81 DY86 ECC82 PF86 AW53-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

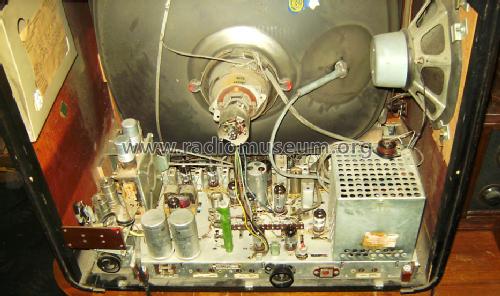

• Model: Leonardo L Vollautomatic 21TD290A /00 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 565 x 430 mm / 24.4 x 22.2 x 16.9 inch

• Notes
• VHF; gegen Mehrpreis auch mit eingebautem UHF-Tuner. Mit Nachrüst UHF: KR36177.2 mit 2x PC86 /Einige Röhren sind mehrfach im Gerät

• Net weight (2.2 lb = 1 kg)
• 31 kg / 68 lb 4.5 oz (68.282 lb)

• Price in first year of sale
• 1,068.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
