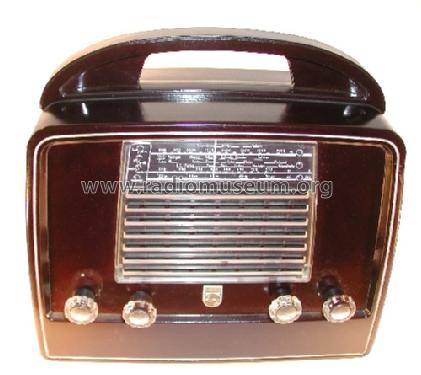

Philips; Eindhoven: LX422AB /00 [Radio] ID = 2130991 1115x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model LX422AB /00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF91 DK92 DF91 DAF91 DL94
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC 110; 125; 220 / 2 x 1,5 & 2 x 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: LX422AB /00 - Philips; Eindhoven tubes
Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 240 x 122 mm / 10.2 x 9.4 x 4.8 inch
Notes

Gewicht mit Batterien: 4,5 kg.

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 285.00 SFr
External source of data E. Erb 3-907007-36-0
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
