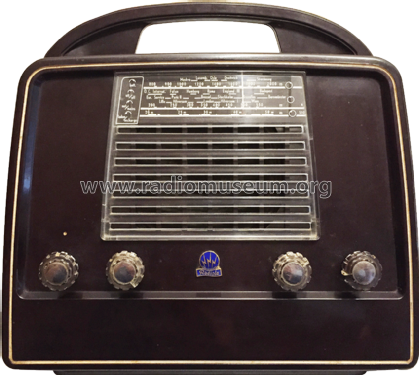

RA395AB; Radiola marque (ID = 2122881) Radio
Radiola marque: RA395AB [Radio] ID = 2122881 850x760
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA395AB 49, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner

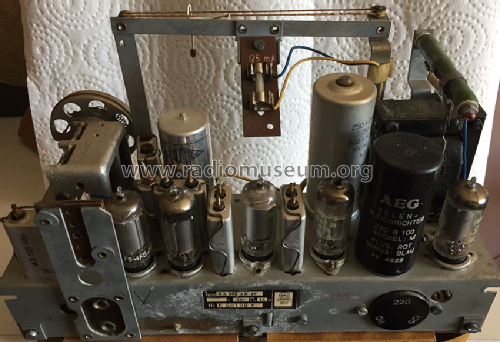

Valves / Tubes 5: DF91 DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 1,5/67,5/110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: RA395AB [49] - Radiola marque

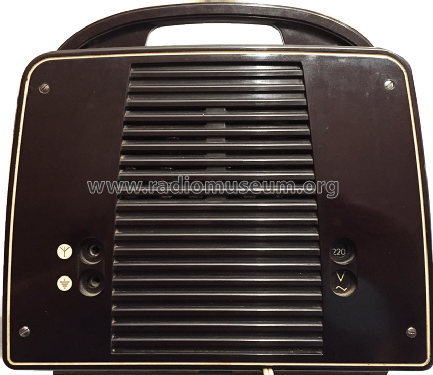

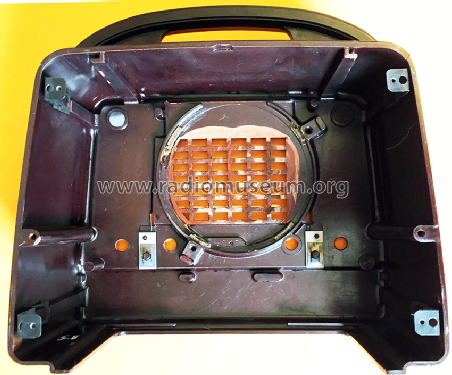

Material Bakelite case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 240 x 130 mm / 10.2 x 9.4 x 5.1 inch

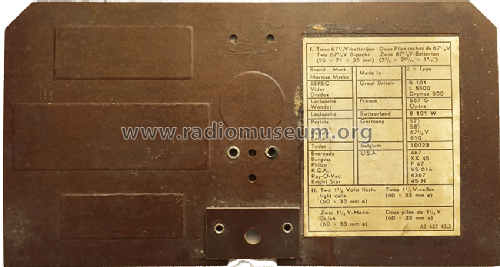

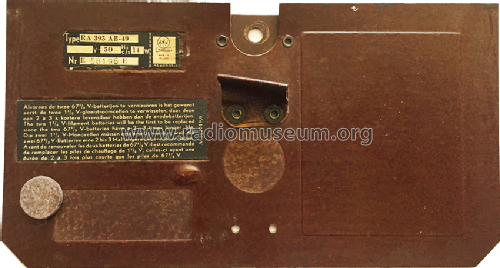

Notes Batteriebetrieb mit 2x67,5V und 2x1,5V. Wohl baugleich mit Philips LX422AB (Radiola gehörte zu Philips).

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
