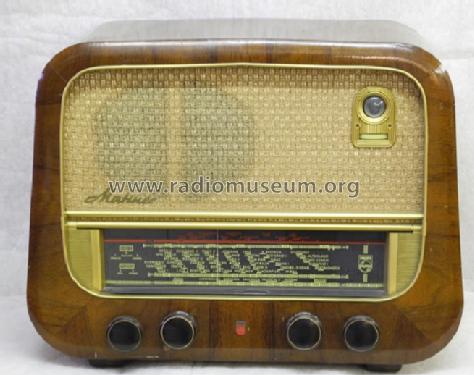

Matinée BA533A; Philips - Österreich (ID = 324293) Radio Matinée BA533A; Philips - Österreich (ID = 1510429) Radio
Use red slider bar for more.
Matinée BA533A; Philips - Österreich (ID = 2369532) Radio
Philips - Österreich: Matinée BA533A [Radio] ID = 2369532 977x767
Select picture or schematic to display from thumbnails on the right and click for download.
For model Matinée BA533A, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 ECH81 EF85 EM34 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 458,5/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Matinée BA533A - Philips - Österreich
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 370 x 250 mm / 18.5 x 14.6 x 9.8 inch
Notes

Parallelgerät zum Hornyphon Lord W563A.

Collectors' prices
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernhard Sacherer. See "Data change" for further contributors.
