Electrófono NG-4032

Electrófono NG-4032; Philips Ibérica, (ID = 2409653) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409654) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409655) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409656) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409657) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409658) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409659) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409660) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409661) R-Player

Electrófono NG-4032; Philips Ibérica, (ID = 2409662) R-Player
Electrófono NG-4032; Philips Ibérica, (ID = 2385556) R-Player Electrófono NG-4032; Philips Ibérica, (ID = 2385557) R-Player
Electrófono NG-4032; Philips Ibérica, (ID = 2385558) R-Player Electrófono NG-4032; Philips Ibérica, (ID = 2385560) R-Player
Electrófono NG-4032; Philips Ibérica, (ID = 2385562) R-Player Electrófono NG-4032; Philips Ibérica, (ID = 2409663) R-Player
Electrófono NG-4032; Philips Ibérica, (ID = 2519506) R-Player
Use red slider bar for more.

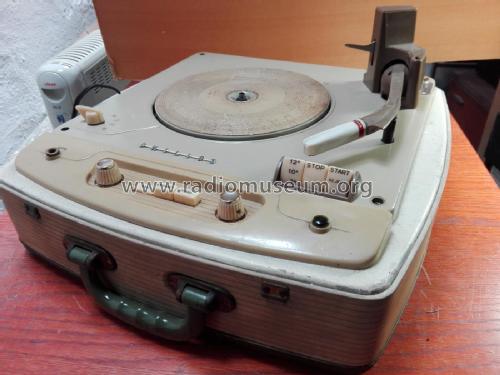

Electrófono NG-4032; Philips Ibérica, (ID = 2385556) R-Player
Philips Ibérica,: Electrófono NG-4032 [R-Player] ID = 2385556 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electrófono NG-4032, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1959 Category: Sound/Video Recorder and/or Player
Valves / Tubes 3: ECC83 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 6 W (unknown quality)
from Radiomuseum.org Model: Electrófono NG-4032 - Philips Ibérica, COPRESA,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 408 x 221 x 398 mm / 16.1 x 8.7 x 15.7 inch
Notes

Philips Ibérica; Maleta portátil NG-4032 con tocadiscos automático

  • Tocadiscos: AG-1024-95-F
  • Cápsula:     AG-3063
  • Aguja Philips 949/ S 46 (Zafiro 18µm)
  • Altavoz:       AD-3700-X
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josh Toreno. See "Data change" for further contributors.



All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Here you find 549 models, 478 with images and 442 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
