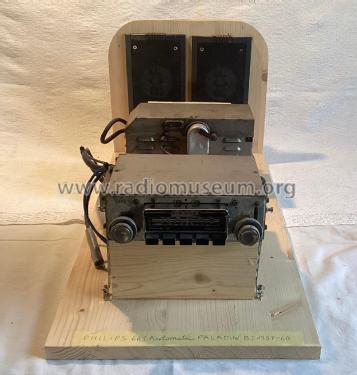

Paladin 661 Automatic ND661V

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204519) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204520) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 115303) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204521) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204522) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204523) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204524) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 204526) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 1045218) Car Radio

Paladin 661 Automatic ND661V; Philips Radios - (ID = 1825979) Car Radio
Paladin 661 Automatic ND661V; Philips Radios - (ID = 796652) Car Radio Paladin 661 Automatic ND661V; Philips Radios - (ID = 763335) Car Radio
Paladin 661 Automatic ND661V; Philips Radios - (ID = 370199) Car Radio Paladin 661 Automatic ND661V; Philips Radios - (ID = 2219600) Car Radio
Paladin 661 Automatic ND661V; Philips Radios - (ID = 2219601) Car Radio Paladin 661 Automatic ND661V; Philips Radios - (ID = 2219602) Car Radio
Paladin 661 Automatic ND661V; Philips Radios - (ID = 2219603) Car Radio Paladin 661 Automatic ND661V; Philips Radios - (ID = 2283432) Car Radio
Paladin 661 Automatic ND661V; Philips Radios - (ID = 2283433) Car Radio Paladin 661 Automatic ND661V; Philips Radios - (ID = 2283434) Car Radio
Use red slider bar for more.
Paladin 661 Automatic ND661V; Philips Radios - (ID = 796652) Car Radio
Philips Radios -: Paladin 661 Automatic ND661V [Car Radio] ID = 796652 850x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model Paladin 661 Automatic ND661V, Philips Radios - Deutschland:
Q: Philips, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1957–1960 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 8: ECC85 EF89 ECH81 EBF89 EF80 EABC80 ECC81 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Paladin 661 Automatic ND661V - Philips Radios - Deutschland
Material Metal case
Shape Chassis only or for «building in»
Notes

Motorische Suchabstimmung für Rechts- und Linkslauf mit automatischer Scharfabstimmung. Ausgangsleistung bei 6 V = 3 W, bei 12 V = 5 W.

Siehe auch Paladin 761 Automatic ND761V

Price in first year of sale 585.00 DM
Collectors' prices
External source of data Erb
Mentioned in HdB d.Rdf-& Ferns-GrH 1957/58 (bis 1959/60)
Literature/Schematics (1) -- Schematic
