For model Party 61 L3A02T /00G /00C /00S, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA85 OA79
Main principle ZF/IF 460 kHz; 4 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2x4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Party 61 L3A02T /00G /00C /00S - Philips - Österreich
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 235 x 165 x 80 mm / 9.3 x 6.5 x 3.1 inch
Notes

Gegenüber dem Vorjahresmodell geändertes Gehäusedesign. Lieferbar in 3 Gehäusefarben.
Party 61, L3A02T/00 G,  Gehäusefarbe Grau
Party 61, L3A02T/00 C,  Gehäusefarbe Braun

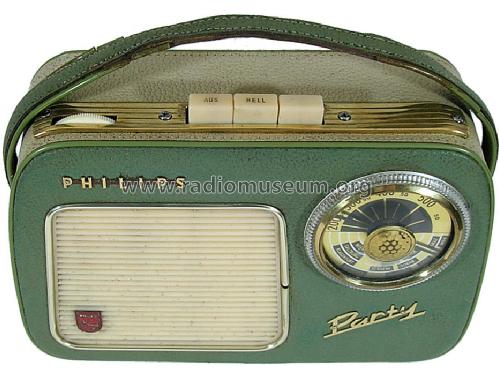

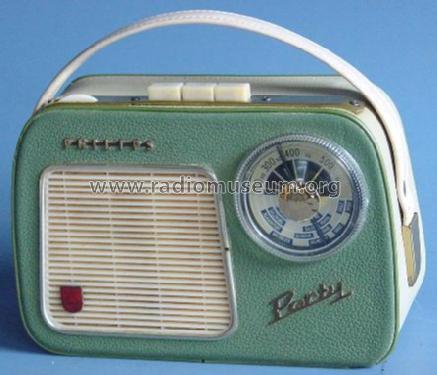

Party 61, L3A02T/00 S,  Gehäusefarbe Grün
Technisch ident mit dem Parallelgerät Hornyphon WL390T/00.
Bereits ein Jahr (1961) später im Zuge der jährlichen Modellpflege vom Party L3A12T/00 abgelöst.

Weiterführende Informationen zu diesem Modell sowie der ganzen Modellreihe in diesem Forumsbeitrag.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
