Michelangelo Kombinations-Truhe 23RD321A

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1961/1962
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 24636
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 31
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Record Player (not changer); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Michelangelo Kombinations-Truhe 23RD321A - Philips Radios - Deutschland
  • Shape

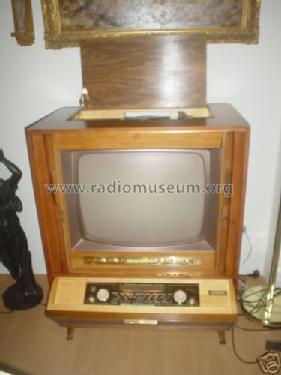

  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 750 x 980 x 440 mm / 29.5 x 38.6 x 17.3 inch
  • Notes

  • Fernseh-Chassis = 23TD320A
    Rundfunk-Chassis = B5DZ11A mit 8 Röhren, 6/10 Kreise, LMKU, Stereo-NF-Verstärker
    Plattenspieler-Chassis = AG2056 (lt. Serviceunterlage AG2020) mit Tonkopf AG3305

    Ausführung im hochglanzpoliertem Edelholzgehäuse. Aufpreis für Nussbaum natur seidenmatt: DM 20,00, für Fernbedienung Typ 60: DM 34,00.

  • Net weight (2.2 lb = 1 kg)
  • 60 kg / 132 lb 2.5 oz (132.159 lb)
  • Price in first year of sale
  • 1,848.00 DM
  • External source of data
  • Erb
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Philips Sammelpreisliste 1961/1962)
