626A-19

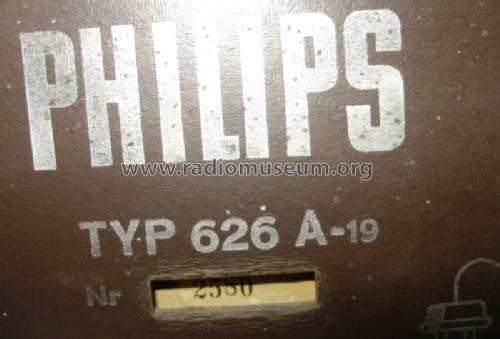

626A-19; Philips, Svenska AB, (ID = 1284653) Radio 626A-19; Philips, Svenska AB, (ID = 1284407) Radio
626A-19; Philips, Svenska AB, (ID = 1284408) Radio 626A-19; Philips, Svenska AB, (ID = 1284409) Radio

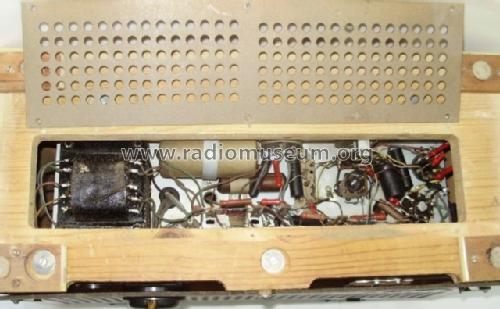

626A-19; Philips, Svenska AB, (ID = 1284410) Radio 626A-19; Philips, Svenska AB, (ID = 1284654) Radio
Use red slider bar for more.
626A-19; Philips, Svenska AB, (ID = 1284653) Radio
Philips, Svenska AB,: 626A-19 [Radio] ID = 1284653 617x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 626A-19, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1942 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 626A-19 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 450 x 250 x 210 mm / 17.7 x 9.8 x 8.3 inch

Model page created by Oleksii Korniienko. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 189 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
