Gavotta 272HU

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23175

• Picture

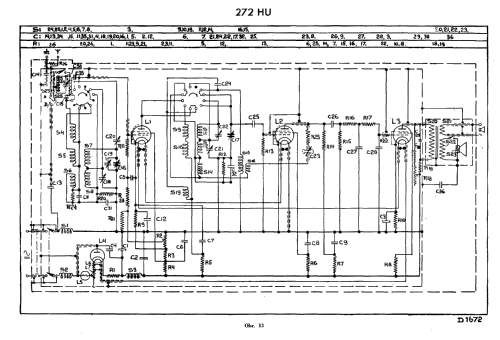

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CF3 CF7 CL4 CY1 C1 or C2

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 100-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gavotta 272HU - Philips akc. spol., Praha-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 350 x 260 mm / 21.3 x 13.8 x 10.2 inch

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Literature/Schematics (1)
• -- Original-techn. papers.
