Philoscop GM4140/22; Philips Electro (ID = 106172) Equipment

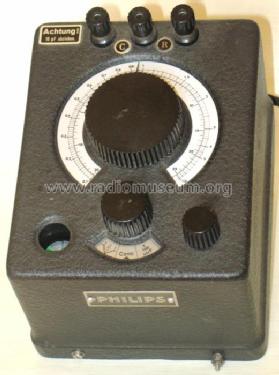

Philips Electro: Philoscop GM4140/22 [Equipment] ID = 106172 522x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Philoscop GM4140/22, Philips Electro Special, Berlin (PESB); Elektro Spezial, Hamburg

Country:  Germany
Manufacturer / Brand:  Philips Electro Special, Berlin (PESB); Elektro Spezial, Hamburg
alternative name

Philips Elektro Sp.
Year: 1937 ? Category: Service- or Lab Equipment
Valves / Tubes 3: AF7 AB2 4697 or AM2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 100-250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Philoscop GM4140/22 - Philips Electro Special,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 135 x 130 x 175 mm / 5.3 x 5.1 x 6.9 inch
Notes Universal-Messbrücke (RC-Messbrücke), Magisches Auge als Null-Indikator. In 7 Bereichen von 0,1 Ohm-10 MOhm und 10 pF-10 µF bei 2 % Fehler. 1 V Messspannung. Vergleichsmessungen bekannter mit unbekannten Impedanzen. Separate Mess-Normalien möglich. AB2 als Netzgleichrichter.
Ursprüngliche Variante ist 4140/A, elektrisch identisch. Variante 4140/B mechanisch anderer Aufbau. Hersteller Philips-Electro-Spezial-GmbH, Berlin W62.
Net weight (2.2 lb = 1 kg) 2.9 kg / 6 lb 6.2 oz (6.388 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (30 Jahre Philips-Philetta, Seite 9)

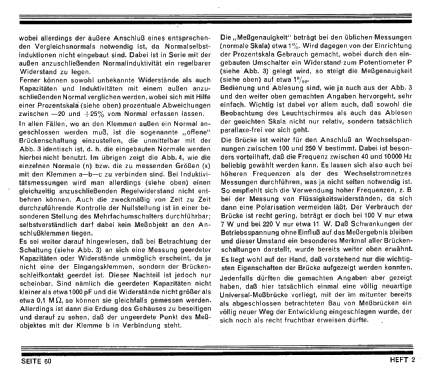

Literature/Schematics (1) Bastelbriefe der Drahtlosen (1938/H.2)

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
