Pionier (Pionnier) V6U -20 -29, V6HU, V6HU -06 -20

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517051) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517052) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517053) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517054) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517055) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517056) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517057) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517058) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517059) Radio

Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1517060) Radio
Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518533) Radio Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518537) Radio
Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518535) Radio Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518540) Radio
Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518539) Radio Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518541) Radio
Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 1516930) Radio
Use red slider bar for more.
Pionier V6U -20 -29, V6HU, V6HU -06 -20; Philips Belgium (ID = 2518533) Radio

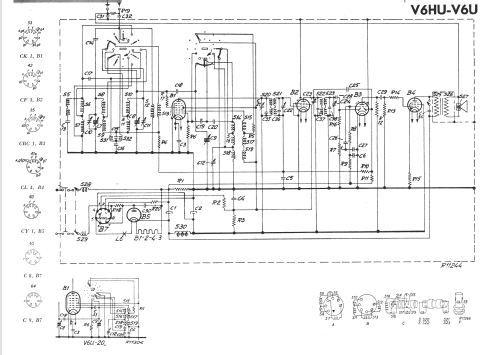

Philips Belgium: Pionier V6U -20 -29, V6HU, V6HU -06 -20 [Radio] ID = 2518533 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pionier (Pionnier) V6U -20 -29, V6HU, V6HU -06 -20, Philips Belgium (Belgien):
Collection Auction House 'Boekenboel' (NL).

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CK1 CF3 CBC1 CL4 CY1 C8 or C9
Main principle Superheterodyne (common); ZF/IF 128 or 118 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-125; 200-225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Pionier V6U -20 -29, V6HU, V6HU -06 -20 - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 330 x 150 mm / 16.5 x 13 x 5.9 inch
Notes
3 Band reception:
  • Model variant "-20":
    • LW: 725 - 1975 m.
    • BC: 198 - 585 m.
    • SW: 16,7 - 50.5 m.
  • other variants:
    • LW: 725 - 1975 m.
    • BC: 198 - 585 m.
    • SW: 16,7 - 51 m.
Tuning scale light bulbs type: 8080 (10V, 200mA).
Loudspeaker Philips type 9617. Connectors for second loudspeaker and for pick-up.
The ballast tube also as mains voltage selector: C8 (200-225 V) or C9 (110-125 V).
The "-20" and "-29" variants have a intermediate frequency of 118 kHz, all others have 128 kHz.

This model is comparable with Philips Matador V6UPhilips V6LU and NSF Aristona V6U.

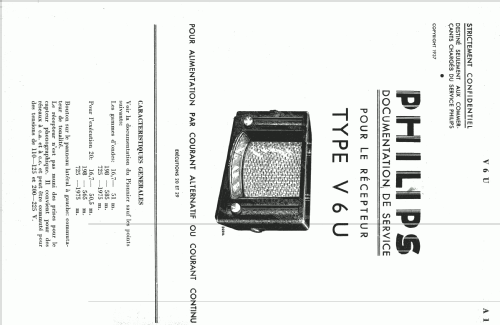

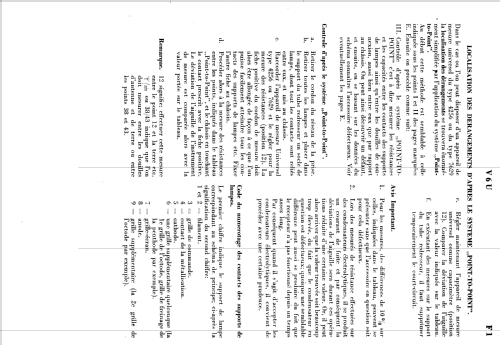

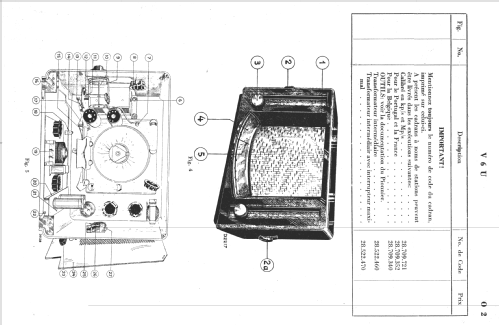

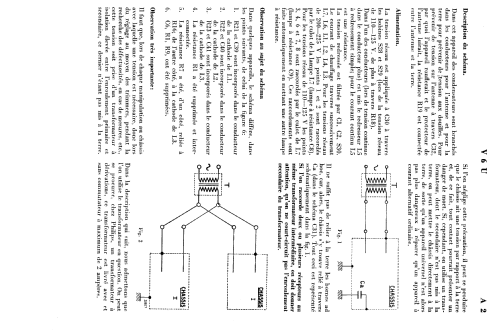

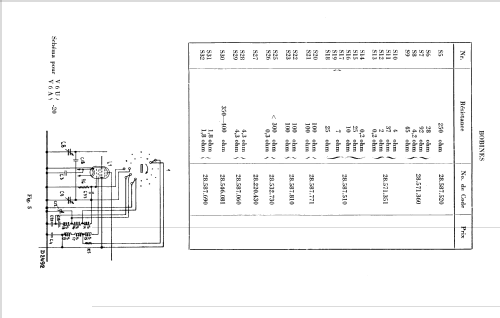

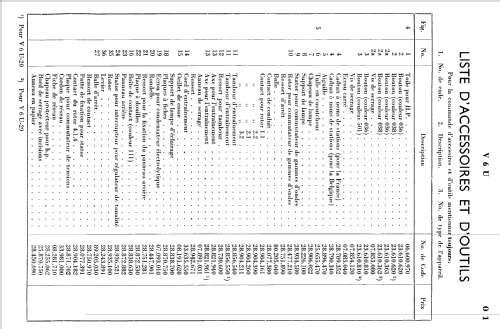

Mentioned in -- Original-techn. papers.

Model page created by a member from B. See "Data change" for further contributors.
