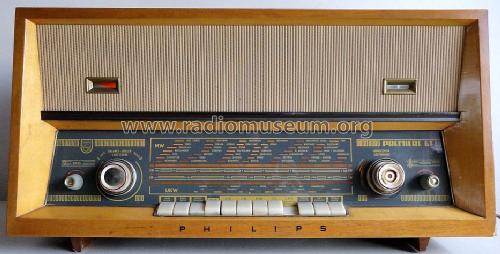

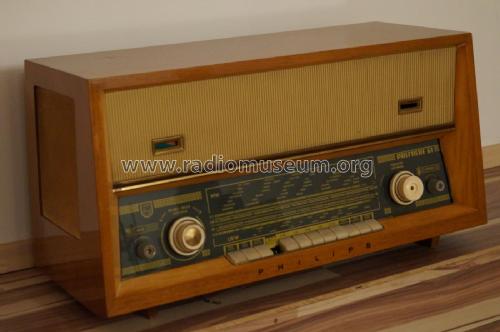

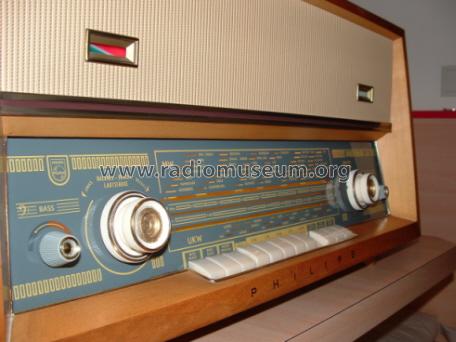

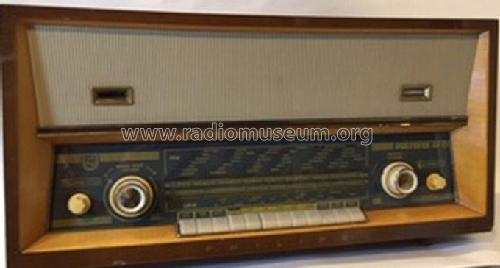

Premiere 61 B6A04A

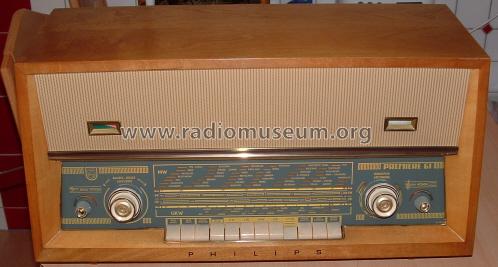

Philips - Österreich: Premiere 61 B6A04A [Radio] ID = 275604 498x267
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1960/1961 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 9: ECC85 ECH81 EF183 EABC80 EM84 EBC81 EL84 EL84 EZ81 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2x2 AF stage(s) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 127; 150; 220; 240 Volt |
| Loudspeaker | 2 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: Premiere 61 B6A04A - Philips - Österreich |
| Material | Wooden case |
| Shape | Tablemodel with Push Buttons. |
| Dimensions (WHD) | 604 x 312 x 250 mm / 23.8 x 12.3 x 9.8 inch |
| Notes | NF-Stereo Parallelgerät zum Horny W680A. |
| Net weight (2.2 lb = 1 kg) | 10.5 kg / 23 lb 2 oz (23.128 lb) |
| Collectors' prices | |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Mentioned in | -- Original-techn. papers. |
Model page created by Wolfgang Bauer. See "Data change" for further contributors.
