Raffael L 17TD144A /04

Raffael L 17TD144A /04; Philips Radios - (ID = 226380) Television

Raffael L 17TD144A /04; Philips Radios - (ID = 226381) Television

Raffael L 17TD144A /04; Philips Radios - (ID = 226382) Television

Raffael L 17TD144A /04; Philips Radios - (ID = 226383) Television

Raffael L 17TD144A /04; Philips Radios - (ID = 226379) Television

Raffael L 17TD144A /04; Philips Radios - (ID = 226384) Television
Raffael L 17TD144A /04; Philips Radios - (ID = 1730175) Television Raffael L 17TD144A /04; Philips Radios - (ID = 778732) Television
Raffael L 17TD144A /04; Philips Radios - (ID = 822530) Television Raffael L 17TD144A /04; Philips Radios - (ID = 1795922) Television
Raffael L 17TD144A /04; Philips Radios - (ID = 1795924) Television Raffael L 17TD144A /04; Philips Radios - (ID = 1795926) Television
Raffael L 17TD144A /04; Philips Radios - (ID = 226385) Television Raffael L 17TD144A /04; Philips Radios - (ID = 1796704) Television
Use red slider bar for more.
Raffael L 17TD144A /04; Philips Radios - (ID = 1730175) Television
Philips Radios -: Raffael L 17TD144A /04 [Television] ID = 1730175 1000x896

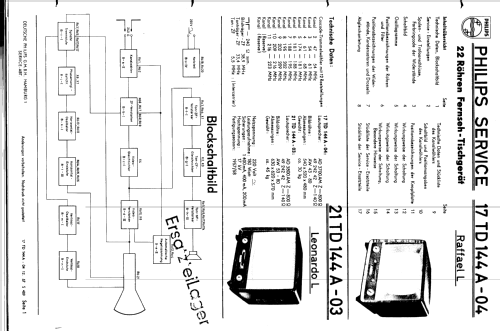

Select picture or schematic to display from thumbnails on the right and click for download.
For model Raffael L 17TD144A /04, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1957/1958 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PL84 PL84 ECH81 PCL82 PCF80 PCF80 PL36 PY81 DY86 UY82 UY82 AW43-80
Semiconductors (the count is only for transistors) OA70 OA81
Main principle Super-Heterodyne (Super in general); ZF/IF 38900/5500 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Raffael L 17TD144A /04 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 520 x 480 mm / 21.3 x 20.5 x 18.9 inch
Notes

Nur VHF mit 10 Kanäle im VHF-Band I und III. Kanalwähler Typ A3 768 24.

43 cm Fernseh-Tischempfänger mit 90° Bildröhre.

Eisenlose Gegentakt-Tonendstufe.

Version mit Skala für Kanalanzeige: 885,-DM.

Zusätzlich verfügbar: Einbauantenne (25,50 DM); Fernbedienung Typ KR 357 55 (35,-DM).



Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Price in first year of sale 875.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
Mentioned in -- Original-techn. papers.

Model page created by Franz Born †. See "Data change" for further contributors.
