• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 205146

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCF80 PCL82 PL84 PCC88 PCF80 PCL82 PF86 PCF80 PCL84 ECH83 EF80 PCF80 EF80 EF80 EF85 ECC82 PL36 PY81 DY87 AW53-88

• Main principle
• Superheterodyne (common)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Reportage 21TX250A - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 560 x 490 x 390 mm / 22 x 19.3 x 15.4 inch

• Notes

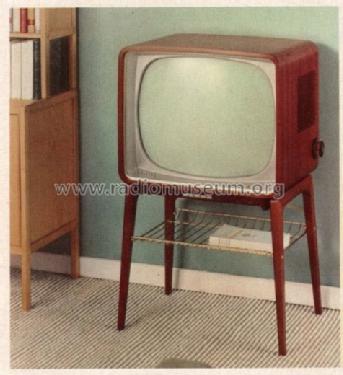

• Television with 21" CRT, price including stand. Height with stand 920 mm. Available in teak or mahogany.
  Switchable to DC mains.

  Same model as Philips Match with 17" CRT.

• Price in first year of sale
• 1,275.00 SEK

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (Philips Svenska Prislista Feb. 1960)
