Revue BA353U

Revue BA353U; Philips - Österreich (ID = 62060) Radio

Revue BA353U; Philips - Österreich (ID = 62061) Radio

Revue BA353U; Philips - Österreich (ID = 62096) Radio
Revue BA353U; Philips - Österreich (ID = 910613) Radio Revue BA353U; Philips - Österreich (ID = 910617) Radio
Revue BA353U; Philips - Österreich (ID = 910616) Radio Revue BA353U; Philips - Österreich (ID = 910614) Radio
Revue BA353U; Philips - Österreich (ID = 910615) Radio Revue BA353U; Philips - Österreich (ID = 66001) Radio
Use red slider bar for more.

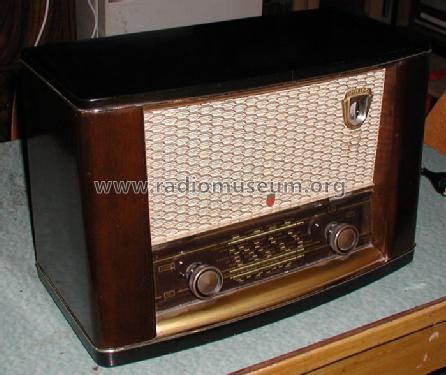

Revue BA353U; Philips - Österreich (ID = 910613) Radio
Philips - Österreich: Revue BA353U [Radio] ID = 910613 700x516

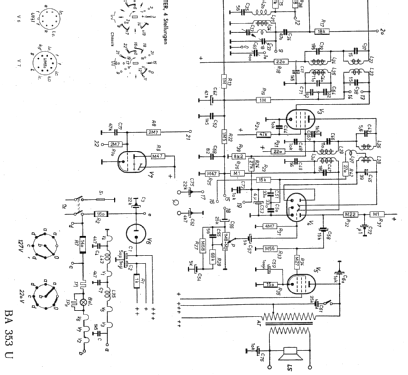

Select picture or schematic to display from thumbnails on the right and click for download.
For model Revue BA353U, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF85 UABC80 UM80 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 459 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 127/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Revue BA353U - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 430 x 290 x 210 mm / 16.9 x 11.4 x 8.3 inch
Notes ZF 459,2KHz.
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Rui Sequeira-Seidl. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1055 models, 990 with images and 853 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
