Serenata BA290U

Serenata BA290U; Philips - Österreich (ID = 45704) Radio

Serenata BA290U; Philips - Österreich (ID = 45705) Radio

Serenata BA290U; Philips - Österreich (ID = 162772) Radio

Serenata BA290U; Philips - Österreich (ID = 526444) Radio

Serenata BA290U; Philips - Österreich (ID = 526445) Radio

Serenata BA290U; Philips - Österreich (ID = 526446) Radio
Serenata BA290U; Philips - Österreich (ID = 949239) Radio Serenata BA290U; Philips - Österreich (ID = 949241) Radio
Serenata BA290U; Philips - Österreich (ID = 949237) Radio Serenata BA290U; Philips - Österreich (ID = 949236) Radio
Serenata BA290U; Philips - Österreich (ID = 369990) Radio Serenata BA290U; Philips - Österreich (ID = 3057) Radio
Serenata BA290U; Philips - Österreich (ID = 949238) Radio Serenata BA290U; Philips - Österreich (ID = 949235) Radio
Serenata BA290U; Philips - Österreich (ID = 3056) Radio Serenata BA290U; Philips - Österreich (ID = 36835) Radio
Use red slider bar for more.

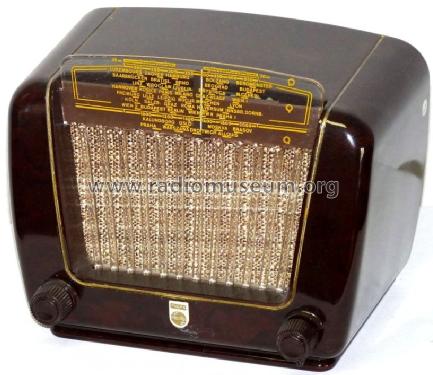

Serenata BA290U; Philips - Österreich (ID = 949239) Radio
Philips - Österreich: Serenata BA290U [Radio] ID = 949239 818x707
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serenata BA290U, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1949–1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Serenata BA290U - Philips - Österreich
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 260 x 194 x 160 mm / 10.2 x 7.6 x 6.3 inch
Notes

Österreich Ausführung der deutschen Philetta 50 BD290U

2 Gehäusefarben:
braun  925.- ATS
creme 950.- ATS.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 925.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips - Österreich
Here you find 1056 models, 991 with images and 853 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips - Österreich: Serenata BA290U
Threads: 1 | Posts: 2
Hits: 1939     Replies: 1
philips: BA290U; Serenata 51( colocación del hilo)
Mario Coelho
23.Dec.05
  1 Estimado Francisco Gallego

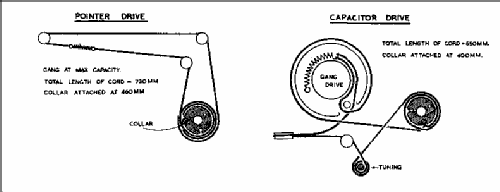

Ya esta hecho el "upload" del esquema de la colocación del hilo de sintonia del aparato Philips BA290U en la pagina respectiva.. Creo que es el mismo  del UA290U . (és similar de BF290U).

Saludos y Buenas Navidades
Mário
Francisco Gallego
28.Dec.05
  2 Mario, muito obrigado por la información. Feliz Navidad y un excelente 2006.

Francisco
