• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106212

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF89 EAA91 EM80 ECC83 EL84 EL84

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/1070 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 125/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

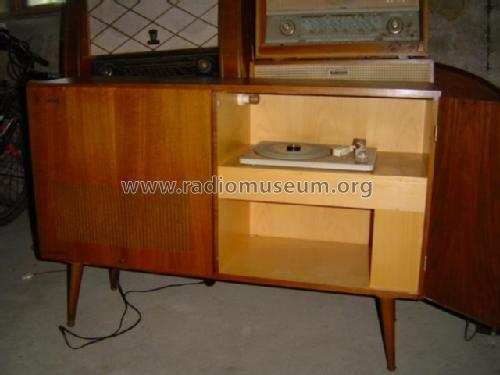

• Model: Stella-Reverbeo-Truhe F6D12A - Philips Radios - Deutschland

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1055 x 720 x 346 mm / 41.5 x 28.3 x 13.6 inch

• Notes
• Phono-Chassis = AG1016 mit Tonkopf AG3305.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
