• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72959

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 458,5 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

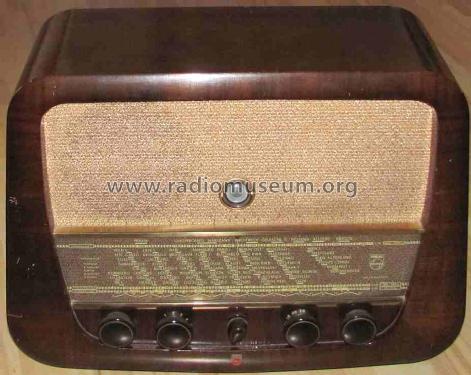

• Model: Super Adagio BA531A - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 370 x 220 mm / 19.3 x 14.6 x 8.7 inch

• Notes

• Eingangsbandfilter für MW.
  Schaltbare Bandbreite.

• Price in first year of sale
• 1,735.00 ATS

• External source of data
• Original Service-Anleitung

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
