Symphonie BA733A

Symphonie BA733A; Philips - Österreich (ID = 70732) Radio

Symphonie BA733A; Philips - Österreich (ID = 972229) Radio

Symphonie BA733A; Philips - Österreich (ID = 972230) Radio

Symphonie BA733A; Philips - Österreich (ID = 781275) Radio

Symphonie BA733A; Philips - Österreich (ID = 972239) Radio

Symphonie BA733A; Philips - Österreich (ID = 972240) Radio

Symphonie BA733A; Philips - Österreich (ID = 313460) Radio

Symphonie BA733A; Philips - Österreich (ID = 313459) Radio
Symphonie BA733A; Philips - Österreich (ID = 935963) Radio Symphonie BA733A; Philips - Österreich (ID = 935960) Radio
Symphonie BA733A; Philips - Österreich (ID = 935959) Radio Symphonie BA733A; Philips - Österreich (ID = 935957) Radio
Symphonie BA733A; Philips - Österreich (ID = 935958) Radio Symphonie BA733A; Philips - Österreich (ID = 935956) Radio
Symphonie BA733A; Philips - Österreich (ID = 278203) Radio Symphonie BA733A; Philips - Österreich (ID = 278204) Radio
Symphonie BA733A; Philips - Österreich (ID = 278205) Radio Symphonie BA733A; Philips - Österreich (ID = 70731) Radio
Use red slider bar for more.

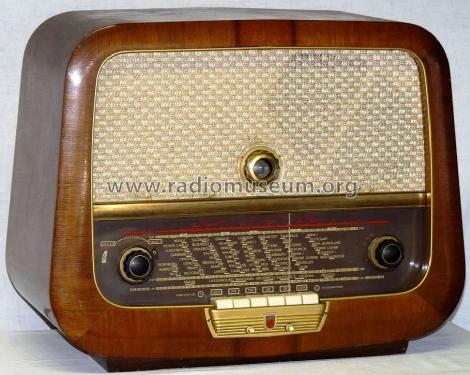

Symphonie BA733A; Philips - Österreich (ID = 935963) Radio
Philips - Österreich: Symphonie BA733A [Radio] ID = 935963 933x743
Select picture or schematic to display from thumbnails on the right and click for download.
For model Symphonie BA733A, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF85 EM34 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 458,5/10700 kHz; 2 AF stage(s)
Tuned circuits 9 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Symphonie BA733A - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 530 x 420 x 265 mm / 20.9 x 16.5 x 10.4 inch
Notes

6 Tasten; Kurzwellenlupe Ovallautsprecher 18 x 22 cm.

Parallelgerät zum Hornyphon Souverän W773A

Net weight (2.2 lb = 1 kg) 12.1 kg / 26 lb 10.4 oz (26.652 lb)
Price in first year of sale 2'770.00 ATS
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Philips - Österreich
Here you find 1054 models, 991 with images and 853 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
