TF1756A

TF1756A; Philips France; (ID = 1859598) Television

TF1756A; Philips France; (ID = 1859600) Television

TF1756A; Philips France; (ID = 1859601) Television

TF1756A; Philips France; (ID = 1859602) Television

TF1756A; Philips France; (ID = 1859603) Television

TF1756A; Philips France; (ID = 1859604) Television

TF1756A; Philips France; (ID = 1859605) Television

TF1756A; Philips France; (ID = 1859606) Television
TF1756A; Philips France; (ID = 660958) Television TF1756A; Philips France; (ID = 660956) Television
TF1756A; Philips France; (ID = 660960) Television TF1756A; Philips France; (ID = 660961) Television
Use red slider bar for more.
TF1756A; Philips France; (ID = 660958) Television
Philips France;: TF1756A [Television] ID = 660958 423x360
Select picture or schematic to display from thumbnails on the right and click for download.
For model TF1756A, Philips France; Paris:
Ebay FR auction 400069585653 redflower 69 / adapted pic.

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC84 PCF80 EF80 EF80 EF80 PL83 EF80 ECL80 PL82 ECL80 PL81 PY81 EY51 EF80 EBF80 ECL80 PY82 PY82 MW43-43 or MW43-24
Semiconductors (the count is only for transistors) OA60
Main principle Super-Heterodyne (Super in general); ZF/IF 28050/39200 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: TF1756A - Philips France; Paris
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 500 x 450 mm / 21.7 x 19.7 x 17.7 inch
Notes

Tube de 43 cm. Sélécteur 12 positions, équipé pour les 11 canaux du standard français VHF 819 lignes.

1 diode germanium.

Le Schémathèque SER mentionne tube MW43-24.

Équivalent au Radiola RA4356. Voir aussi modèle similaire TF1761A.

Collectors' prices

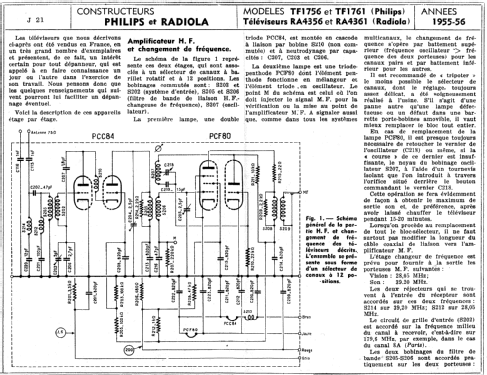

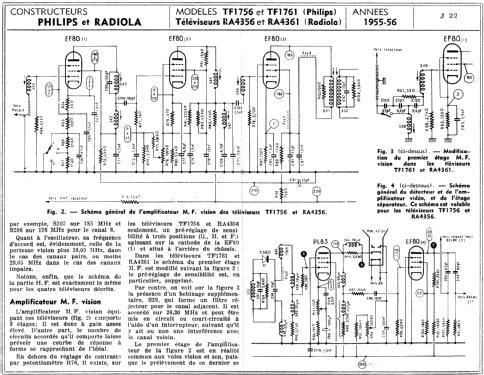

Mentioned in Schémathèque Éditions Radio (SER) (Nr. 58, p.42)
