For model TF1761A, Philips France; Paris:
Eigenes Bild.

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 19: PCC84 PCF80 EF80 EF80 EF80 PL83 EF80 ECL80 PL82 ECL80 PL81 PY81 EY51 EF80 EBF80 ECL80 PY82 PY82 MW43-24
Semiconductors (the count is only for transistors) OA60
Main principle Super-Heterodyne (Super in general); ZF/IF 28050/39200 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 130; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: TF1761A - Philips France; Paris
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 580 x 500 x 450 mm / 22.8 x 19.7 x 17.7 inch
Notes

Tube de 43 cm. Sélécteur 12 positions, équipé pour les 11 canaux du standard français.

1 diode germanium. Sensibilité 2 positions. HP elliptique de 10 x 14 cm.

Coffret en tôle laqué, façade polystyrène.

Équivalent au Radiola RA4361. Voir aussi modèle similaire TF1756A.

Price in first year of sale 102'720.00 FRF

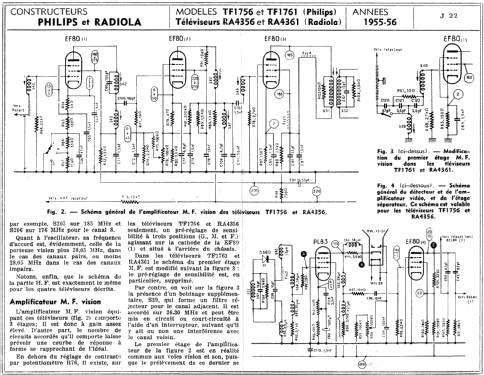

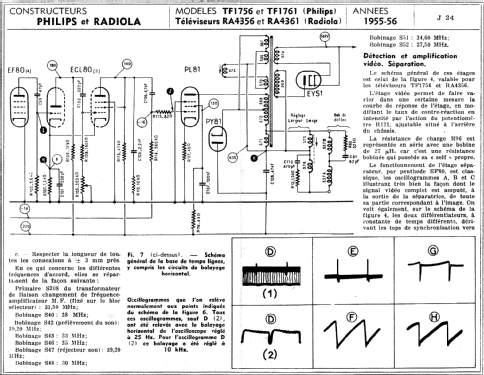

Mentioned in Schémathèque Éditions Radio (SER) (Nr. 58, p.42)
