TX1410U
Use red slider bar for more.
Philips Italy;: TX1410U [Television] ID = 841655 800x333

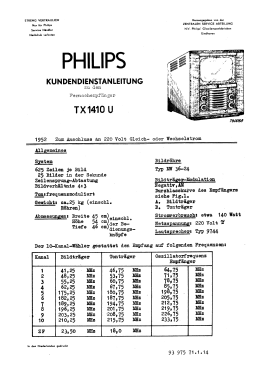

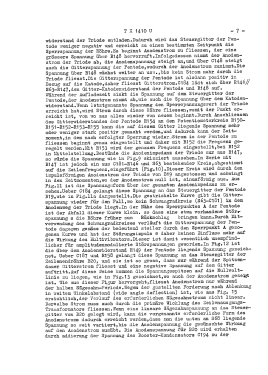

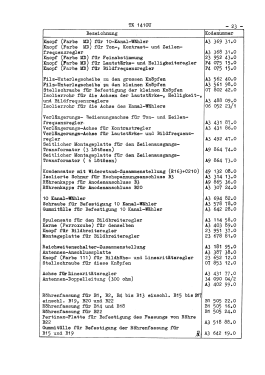

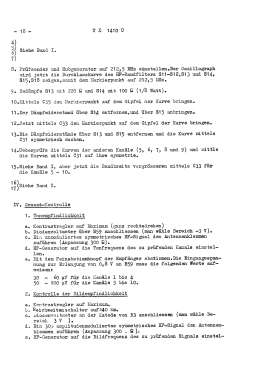

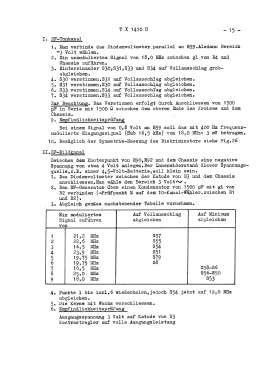

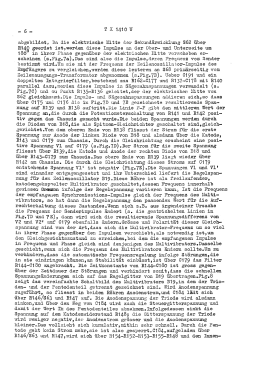

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1952 | Category: Television Receiver (TV) or Monitor | ||||

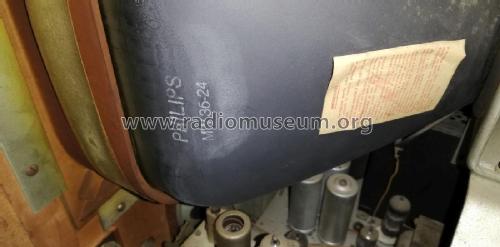

| Valves / Tubes | 24: EF80 ECC81 EF80 EF80 EF80 EF80 EB91 EF80 PL83 EF80 EF80 EQ80 ECL80 ECL80 ECL80 ECL80 EB91 ECL80 PL81 PY80 EY51 PY82 PY82 MW36-24 |
|---|
| Main principle | Superhet with RF-stage |
|---|---|
| Wave bands | Wave Bands given in the notes. |
| Details | |
| Power type and voltage | AC/DC-set / 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15.5 cm = 6.1 inch |
| Power out | |
| from Radiomuseum.org | Model: TX1410U - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel, high profile (upright - NOT Cathedral nor decorative). |
| Dimensions (WHD) | 450 x 540 x 490 mm / 17.7 x 21.3 x 19.3 inch |
| Notes | Der TX1410U hat VHF-Kanäle 1 - 10 im Band I und III. Parallelton-Empfänger. |
| Net weight (2.2 lb = 1 kg) | 25 kg / 55 lb 1.1 oz (55.066 lb) |
| Source of data | - - Data from my own collection |
Model page created by Bernhard Nagel. See "Data change" for further contributors.
