Video Recorder EL3400

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 82077

• Picture

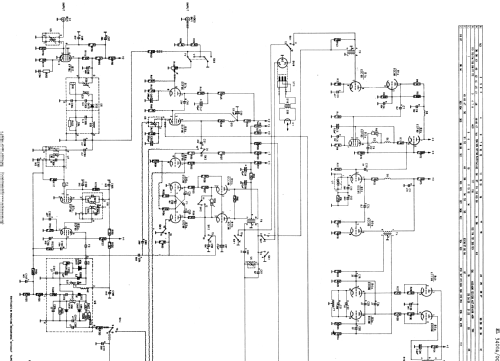

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• ECC89 ECF80 ECF80 ECF80 EM87 ECF80 ECF80 ECF80 ECC85 ECC85 ECC85 ECC88 ECC88 ECC88 ECC88 ECC83 EL95 EF184 ECL84 ECL84 EM87

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Video Recorder EL3400 - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 420 x 390 mm / 24.8 x 16.5 x 15.4 inch

• Notes

•

  Video Signal System	CCIR:R/P
  Videostandard:	other

  Tuner equipped:	No	HF Output:	Yes
  Timer:	No	Color:	No
  Insert-Cut:	No	Controllable by Editing-System:	No
  Output Level:	-	RGB Video In/Out:	No
  BAS Video In:	Yes	Component Video In/Out:	No
  S-Video In/Out:	No	Signal to Noise Video:	40dB
  Horizontal Resol. black/white:	200l.	Horizontal Resolution Color:	-
  Dropout compensator:	No	Wow and Flutter lin. audiotrack:	-
  No. of Audiochannels linear track:	1	No. of Audiochannels helical track:	-
  Signal to Noise linear Audio track:	50dB	Signal to Noise helical Audio track:	-
  Audio Out	-	Audio In	Asym
  crosstalk lin. Audio track	-	crosstalk heli. Audio track	-














  Audio Frequency Response: 120Hz to 12000Hz
  Timebase Corrector: No
  Remote Control: No



• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 7,000.00 DM

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Funk-Technik (FT) (18/1964, S. 652 - 655 / Beschreibung, Daten)

• Author
• Model page created by Trev Levick. See "Data change" for further contributors.
