17-TE-213-A-05; Philips Ibérica, (ID = 1445297) Television
Philips Ibérica,: 17-TE-213-A-05 [Television] ID = 1445297 933x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model 17-TE-213-A-05, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona:
Foto del manual

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: EF80 PCF80 PCL82 PCC88 PCF80 EF85 EF80 EF80 EF80 PCF80 ECH81 PCF80 PL81 PY81 DY87 PCL82 PY82 PY82 PY82 PY82 AW43-80
Semiconductors (the count is only for transistors) OA70 OA81
Main principle Superheterodyne (common); ZF/IF 38900/33400 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 17-TE-213-A-05 - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 452 x 392.5 x 380 mm / 17.8 x 15.5 x 15 inch
Notes

TRC: 17"

Selector rotativo de 12 canales (E2 a E11) de VHF.

Este modelo admite la conexión del mando a distancia EA-9488

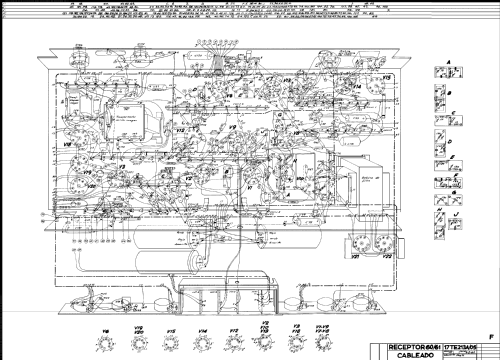

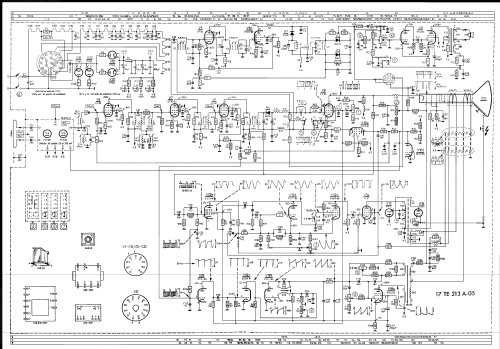

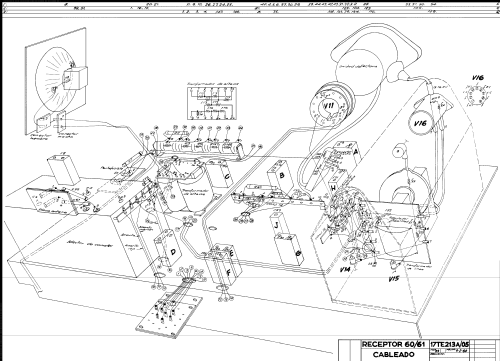

Literature/Schematics (2) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
