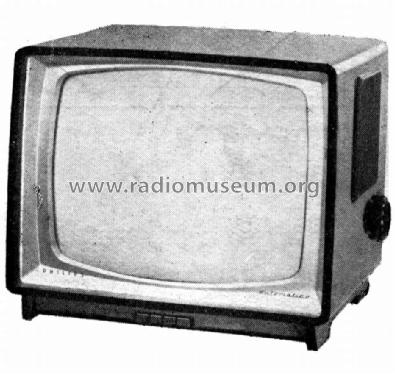

Philips Ibérica,: 23-TE-260-A-05 [Television] ID = 1446126 933x885
Select picture or schematic to display from thumbnails on the right and click for download.
For model 23-TE-260-A-05, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona:
Foto del manual

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1961 Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCF80 PCL82 PL84 PCC88 PCF80 PCL82 PF86 PCF80 PCL84 ECH81 EF80 PCF80 EF184 EF184 EF183 ECC82 PL36 PY88 DY87 PCF80 AW59-90
Semiconductors (the count is only for transistors) OA70 OA81 OA202 OA210 BA100
Main principle Superheterodyne (common); ZF/IF 38900/33400 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 23-TE-260-A-05 - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 567 x 497 x 416 mm / 22.3 x 19.6 x 16.4 inch
Notes

TRC: 23"

Selector rotativo de 12 canales (E2 a E11) de VHF.

Este modelo admite la conexión del mando a distancia EA-9488

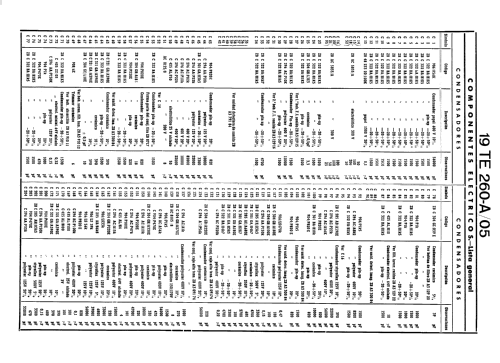

Literature/Schematics (2) -- Original-techn. papers.
