E24T663 /00; Philips Ibérica, (ID = 1757028) Television
Philips Ibérica,: E24T663 /00 [Television] ID = 1757028 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model E24T663 /00, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1970 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 12: PCL86 PL84 PCF201 PCF200 PCF802 PCL805 PL504 PCH200 PY81 DY802 PCL84 unknown_CRT
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details

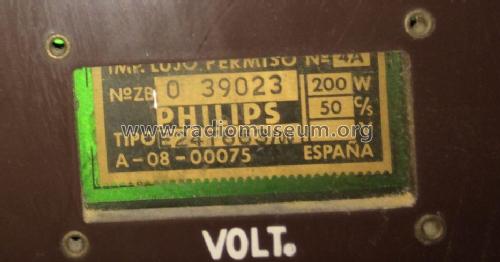

Power type and voltage Alternating Current supply (AC) / 120; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: E24T663 /00 - Philips Ibérica, COPRESA,
Material Wooden case

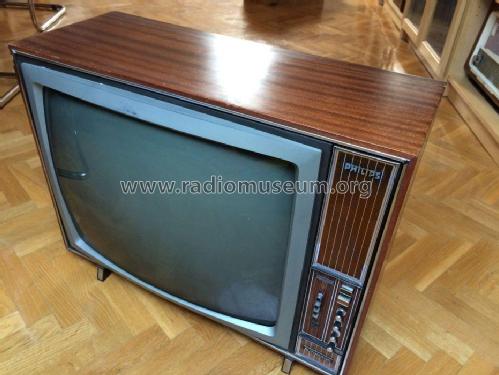

Shape Tablemodel, with any shape - general.
Dimensions (WHD) 657 x 503 x 390 mm / 25.9 x 19.8 x 15.4 inch
Notes

Four pushbuttons for VHF-UHF preselection. Varicap tuner. 61cm (24 inch) picture tube of unknown type.

Model page created by Rafael Chueca. See "Data change" for further contributors.
