Albert Hall Hi-Z F6Z96A
Philips Electrical Industries of New Zealand Ltd.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332758

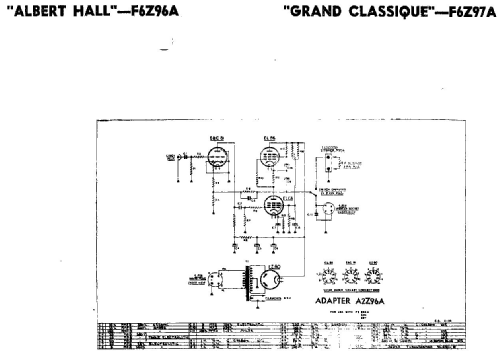

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Albert Hall Hi-Z F6Z96A - Philips Electrical Industries
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 36.5 x 34.5 x 16.75 inch / 927 x 876 x 425 mm
- Notes
-
PHILIPs "ALBERT HALL" An exquisite traditional walnut cabinet distinguishes this Philips HI-Z Diamond Range radiogram. Three high impedance Super-concert speakers, scientifically positioned for perfect tonal balance. 11-valve performance from 7 multi-function valves. Full waveband coverage. Philips Touch-0-Matic four-speed record changer.
Can be used in conjunction with Stereo-Mate A2Z96A
The same chassis was used with the model Grand Classique F6Z97A
- Price in first year of sale
- 135.00 NZ Guineas
- Mentioned in
- -- Original prospect or advert (Press 21 October 1958 Page 10)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Notes.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
