• Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 341640

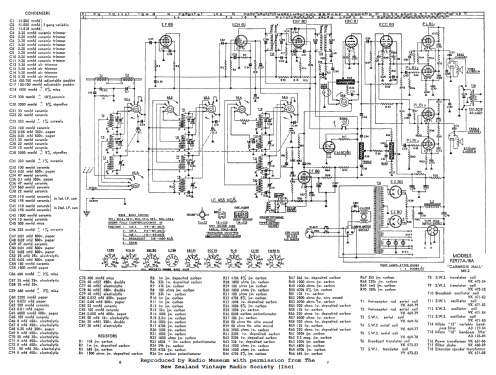

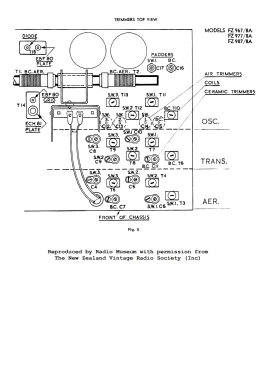

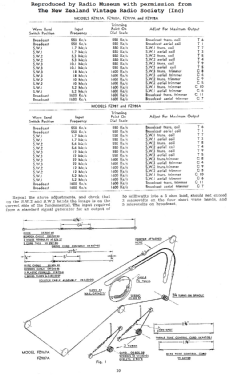

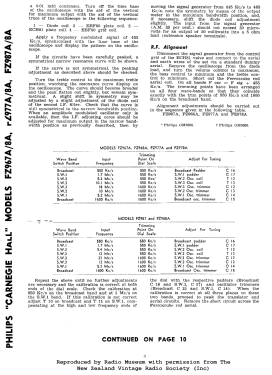

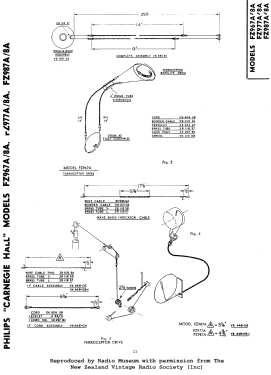

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details

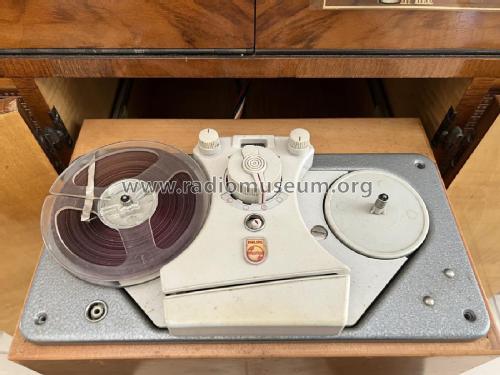

  • Changer + Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

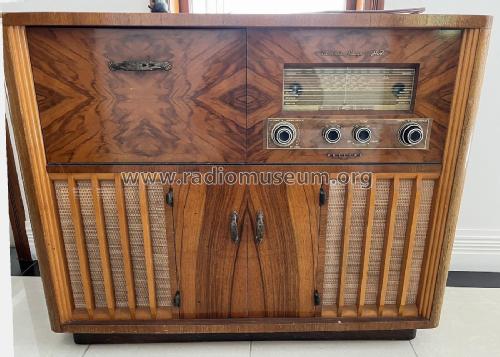

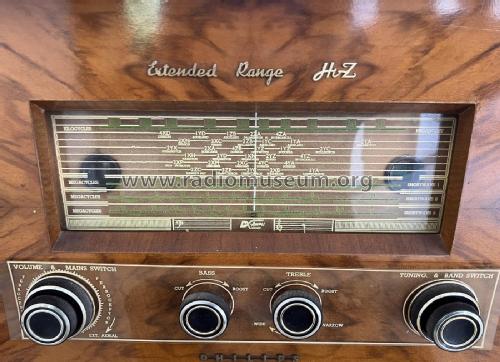

  • Model: Carnegie Hall FZ978A [MKII] - Philips Electrical Industries
  • Shape
  • Console with any shape - in general
  • Notes
  • Philips FZ977A Carnegie Hall MKII.

    The second in the series of Carnegie Hall model console radiograms. See above table.

    13-Valve superhet with RF stage HI-Z Hifi with 4 speed record changer and tape deck.

    See other models listed separately.

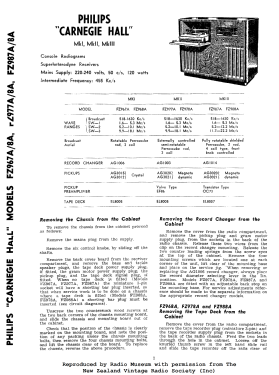

        MKI MKII MKIII
    Model   FZ967A & FZ968A FZ977A & FZ978A FZ987A & FZ988A
    Frequency BC 518-1630 kHz 518-1630 kHz 518-1630 kHz
      SW1 1.6-5.3     MHz 1.6-5.3     MHz 1.6-5.3     MHz
      SW2 5.2-10.1   MHz 5.2-10.1   MHz 5.2-12.2   MHz
      SW3 9.9-18.1   MHz 9.9-18-1   MHz 11.7-22.2 MHz
    Record Changer   AG1006 AG1003 AG1014
    Pickups   AG3015 Crystal AG3020 Magneto dynamic AG3020 Magneto dynamic
        AG3012 Crystal AG3021 Magneto dynamic AG3021 Magneto dynamic
    Pickup Preamplifier     EF86 Valve type OC73 Transistor type
    Tape Deck   EL8005 (FZ968A only) EL8005 (FZ978A only) EL8007 (FZ988A only)
  • Price in first year of sale
  • 264.00 NZ Guineas
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
