• Year
  • 1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 332899

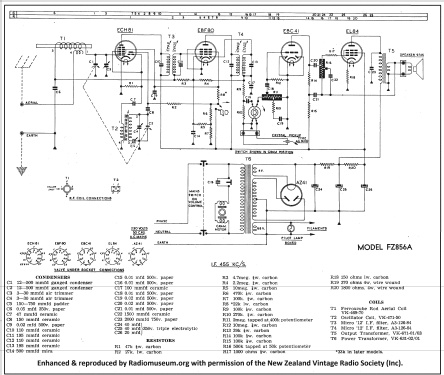

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: FZ856A - Philips Electrical Industries
  • Shape
  • Console with any shape - in general
  • Price in first year of sale
  • 72.45 NZ £
  • Mentioned in
  • -- Original prospect or advert (Press 10 October 1955 Page 9)
  • Literature/Schematics (1)

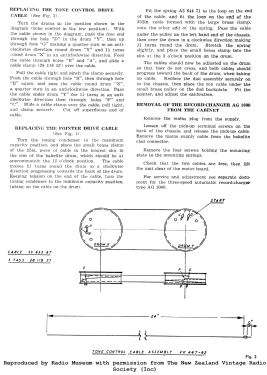

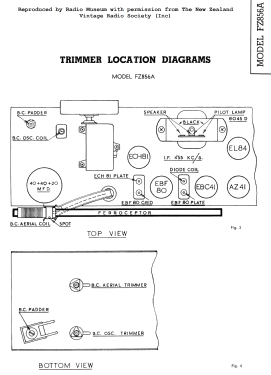

  • -- Original-techn. papers.
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
