Radioplayer BZ126A

Radioplayer BZ126A; Philips Elec. Ind. (ID = 1966654) Radio

Radioplayer BZ126A; Philips Elec. Ind. (ID = 1966655) Radio
Radioplayer BZ126A; Philips Elec. Ind. (ID = 1966652) Radio Radioplayer BZ126A; Philips Elec. Ind. (ID = 1966653) Radio
Use red slider bar for more.
Radioplayer BZ126A; Philips Elec. Ind. (ID = 1966652) Radio
Philips Elec. Ind.: Radioplayer BZ126A [Radio] ID = 1966652 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radioplayer BZ126A, Philips Elec. Ind. of N.Z Ltd

Country:  New Zealand
Manufacturer / Brand:  Philips Elec. Ind. of N.Z Ltd
Year: 1952/1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH42 EAF42 EL41 EZ40
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radioplayer BZ126A - Philips Elec. Ind. of N.Z Ltd
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 274 x 170 x 120 mm / 10.8 x 6.7 x 4.7 inch
Notes

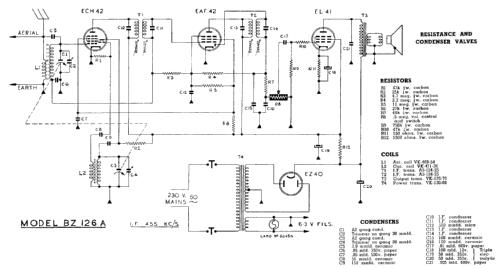

Some models included a self-biased output tube, where the EL41 cathode is connected directly to ground.  Both schematics are provided.

This radio uses the same cabinet as the English model 200U, although that model is a 3-band radio with a significantly different chassis.

Model page created by Steve Dunford. See "Data change" for further contributors.
