Radioplayer Supergram FZ956
Philips Electrical Industries of New Zealand Ltd.; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339787

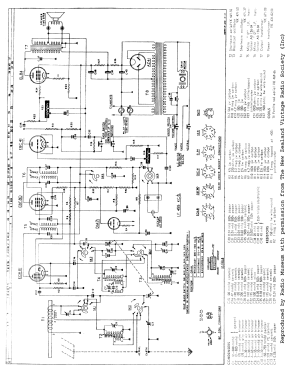

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radioplayer Supergram FZ956 - Philips Electrical Industries
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 37.25 x 32.12 x 15.5 inch / 946 x 816 x 394 mm
- Notes
-
6-Valve (including tuning indicator) superhet console radiogram.
Philips Model AG1000 3 speed record changer.
Solid mahogany cabinet.
- Price in first year of sale
- 110.00 NZ £
- Mentioned in
- -- Original prospect or advert (Press 13 April 1956 Page 16)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
